Open Link/Studless Anchor Chain

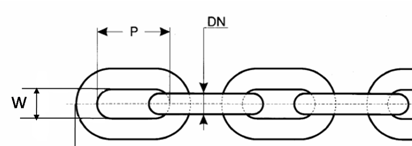

d(φ)		CHAIN LINK SIZE		BM1		BM2		BM3		APPROX.
		CHAIN LINK SIZE		U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		WEIGHT
		3.5d	1.5d	U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		PER
DIAMETER		INSIDE	INSIDE	PROOF	BREAKING	PROOF	BREAKING	PROOF	BREAKING	27.5M
DIAMETER		LENGTH	WIDTH	LOAD	LOAD	LOAD	LOAD	LOAD	LOAD	27.5M
(in.)	(mm.)	(mm.)	(mm.)	(kn.)	(kn.)	(kn.)	(kn.)	(kn.)	(kn.)	(kg.)
1/2	12.5	75	45	28.75	57.81	41.2	82.6	56.4	112.8	85.41
9/16	14	84	50.4	34.78	69.96	51	101.9	70.76	141.5	106.55
5/8	16	96	57.6	47.1	94.72	66.2	132.3	92.42	184.83	139.44
11/16	17.5	105	63	56.35	113.31	78.89	157.78	110.55	221.1	178.35
3/4	19	114	68.4	66.42	133.57	93.6	187.2	130.32	260.64	217.68
13/16	20.5	123	73.8	77.33	155.49	108.64	217.27	151.7	303.42	229.14
7/8	22	132	79.2	89.06	179.08	125.4	250.9	174.4	349.4	264.49
15/16	24	144	86.4	105.98	213.25	149.9	298.9	207.9	415.8	341.82
1-1/16	26	156	93.6	124.38	250.12	175.4	350.8	244	488	369.94
1-1/8	28	168	100.8	144.26	290.08	203.8	406.7	283	566	427.04
1-3/16	30	180	108	165.6	333	234.2	467.5	324.9	649.8	490.98
1-1/4	32	192	115.2	188.42	378.88	265.6	531.2	369.6	739.3	559.65
1-5/16	34	204	122.4	212.7	427.72	299.9	599.8	417.3	834.6	671.52
1-7/16	36	216	129.6	238.46	479.52	336.1	672.3	467.8	935.7	707.85
1-1/2	38	228	136.8	265.7	534.28	374.4	747.7	521.3	1042.5	788.98
1-9/16	40	240	144	294.4	592	414.5	829.1	577.6	1155.2	869.36
1-5/8	42	252	151.2	324.58	652.68	457.7	915.3	636.8	1273.6	959.3
1-3/4	44	264	158.4	356.22	716.32	502.7	999.6	698.9	1398	1111.25
1-13/16	46	276	165.6	389.34	782.92	548.8	1097.6	763.9	1527.8	1152.07
1-7/8	48	288	172.8	423.94	852.48	597.8	1195.6	831.7	1663.5	1256.26
2	50	300	180	460	926.09	648.8	1293.6	902.5	1805	1360.41
2-1/16	52	312	187.2	497.54	1000.48	697.63	1395.26	976.14	1952.28	1485.61
2-1/8	54	324	194.4	536.54	1078.92	752.33	1504.66	1052.68	2105.36	1648.08
2-3/16	56	336	201.6	577.02	1160.32	809.09	1618.18	1132.1	2264.2	1715.97
2-5/16	58	348	208.8	618.98	1244.68	867.91	1735.82	1214.4	2428.8	1844.5
2-3/8	60	360	216	662.4	1332	928.8	1857.6	1299.6	2599.2	1973.29
2-7/16	62	372	223.2	707.3	1422.28	991.75	1983.5	1387.68	2775.36	2101.56
2-1/2	64	384	230.4	753.66	1515.52	1056.77	2113.54	1478.66	2957.32	2298.47
2-9/16	66	396	237.6	801.5	1611.72	1123.85	2247.7	1572.52	3145.04	2398.1
2-11/16	68	408	244.8	850.82	1710.88	1192.99	2385.98	1669.26	3338.52	2522.88
2-3/4	70	420	252	901.6	1813	1264.2	2528.4	1768.9	3537.8	2697.65
* Surface：Self Color or According to Customers' Request(H.D.G.)
* Material: (U1:CM370; U2:CM490; U3:CM690)

d(φ)		CHAIN LINK SIZE		BM1		BM2		BM3		APPROX.
		CHAIN LINK SIZE		U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		WEIGHT
		3.5d	1.5d	U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		U2 OPEN LINK CHAIN		PER
DIAMETER		INSIDE	INSIDE	PROOF	BREAKING	PROOF	BREAKING	PROOF	BREAKING	27.5M
DIAMETER		LENGTH	WIDTH	LOAD	LOAD	LOAD	LOAD	LOAD	LOAD	27.5M
(in.)	(mm.)	(mm.)	(mm.)	(kn.)	(kn.)	(kn.)	(kn.)	(kn.)	(kn.)	(kg.)
1/2	12.5	75	45	28.75	57.81	41.2	82.6	56.4	112.8	85.41
9/16	14	84	50.4	34.78	69.96	51	101.9	70.76	141.5	106.55
5/8	16	96	57.6	47.1	94.72	66.2	132.3	92.42	184.83	139.44
11/16	17.5	105	63	56.35	113.31	78.89	157.78	110.55	221.1	178.35
3/4	19	114	68.4	66.42	133.57	93.6	187.2	130.32	260.64	217.68
13/16	20.5	123	73.8	77.33	155.49	108.64	217.27	151.7	303.42	229.14
7/8	22	132	79.2	89.06	179.08	125.4	250.9	174.4	349.4	264.49
15/16	24	144	86.4	105.98	213.25	149.9	298.9	207.9	415.8	341.82
1-1/16	26	156	93.6	124.38	250.12	175.4	350.8	244	488	369.94
1-1/8	28	168	100.8	144.26	290.08	203.8	406.7	283	566	427.04
1-3/16	30	180	108	165.6	333	234.2	467.5	324.9	649.8	490.98
1-1/4	32	192	115.2	188.42	378.88	265.6	531.2	369.6	739.3	559.65
1-5/16	34	204	122.4	212.7	427.72	299.9	599.8	417.3	834.6	671.52
1-7/16	36	216	129.6	238.46	479.52	336.1	672.3	467.8	935.7	707.85
1-1/2	38	228	136.8	265.7	534.28	374.4	747.7	521.3	1042.5	788.98
1-9/16	40	240	144	294.4	592	414.5	829.1	577.6	1155.2	869.36
1-5/8	42	252	151.2	324.58	652.68	457.7	915.3	636.8	1273.6	959.3
1-3/4	44	264	158.4	356.22	716.32	502.7	999.6	698.9	1398	1111.25
1-13/16	46	276	165.6	389.34	782.92	548.8	1097.6	763.9	1527.8	1152.07
1-7/8	48	288	172.8	423.94	852.48	597.8	1195.6	831.7	1663.5	1256.26
2	50	300	180	460	926.09	648.8	1293.6	902.5	1805	1360.41
2-1/16	52	312	187.2	497.54	1000.48	697.63	1395.26	976.14	1952.28	1485.61
2-1/8	54	324	194.4	536.54	1078.92	752.33	1504.66	1052.68	2105.36	1648.08
2-3/16	56	336	201.6	577.02	1160.32	809.09	1618.18	1132.1	2264.2	1715.97
2-5/16	58	348	208.8	618.98	1244.68	867.91	1735.82	1214.4	2428.8	1844.5
2-3/8	60	360	216	662.4	1332	928.8	1857.6	1299.6	2599.2	1973.29
2-7/16	62	372	223.2	707.3	1422.28	991.75	1983.5	1387.68	2775.36	2101.56
2-1/2	64	384	230.4	753.66	1515.52	1056.77	2113.54	1478.66	2957.32	2298.47
2-9/16	66	396	237.6	801.5	1611.72	1123.85	2247.7	1572.52	3145.04	2398.1
2-11/16	68	408	244.8	850.82	1710.88	1192.99	2385.98	1669.26	3338.52	2522.88
2-3/4	70	420	252	901.6	1813	1264.2	2528.4	1768.9	3537.8	2697.65
* Surface：Self Color or According to Customers' Request(H.D.G.)
* Material: (U1:CM370; U2:CM490; U3:CM690)
